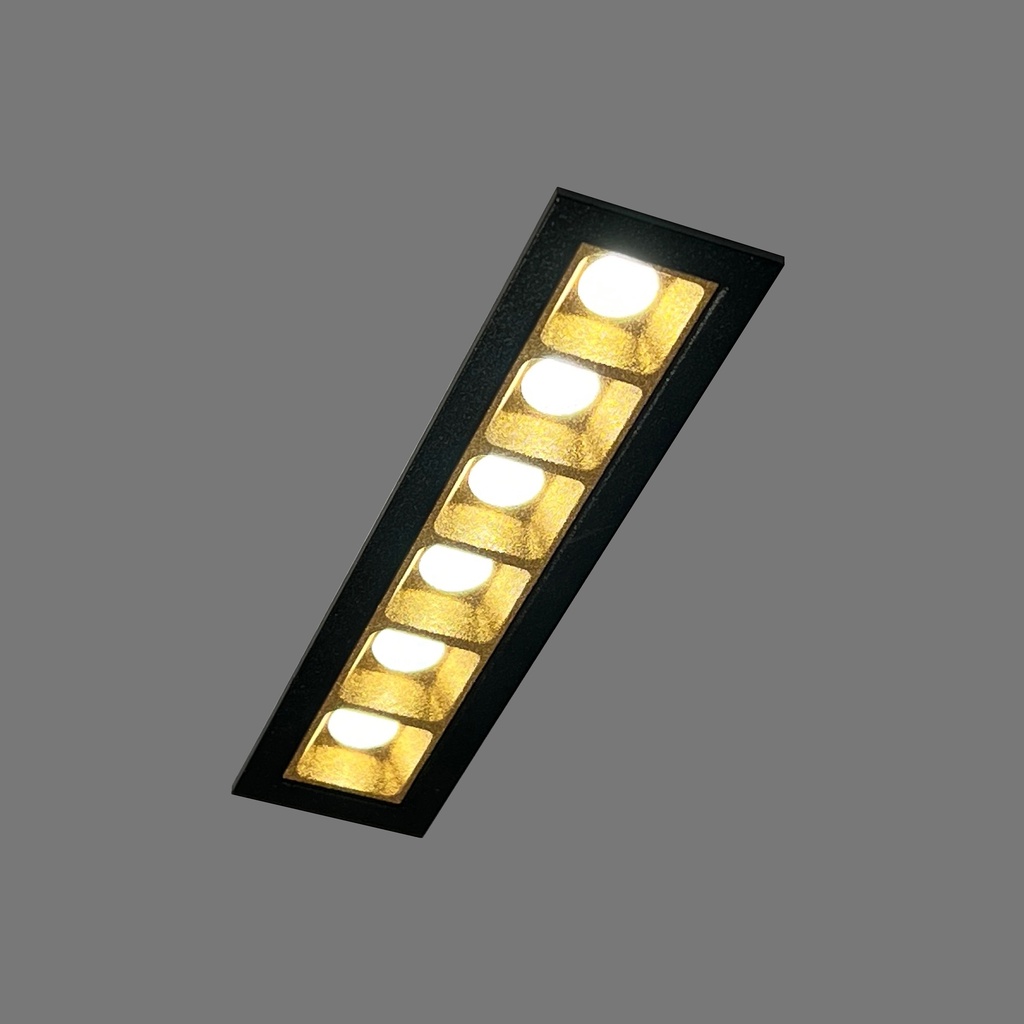

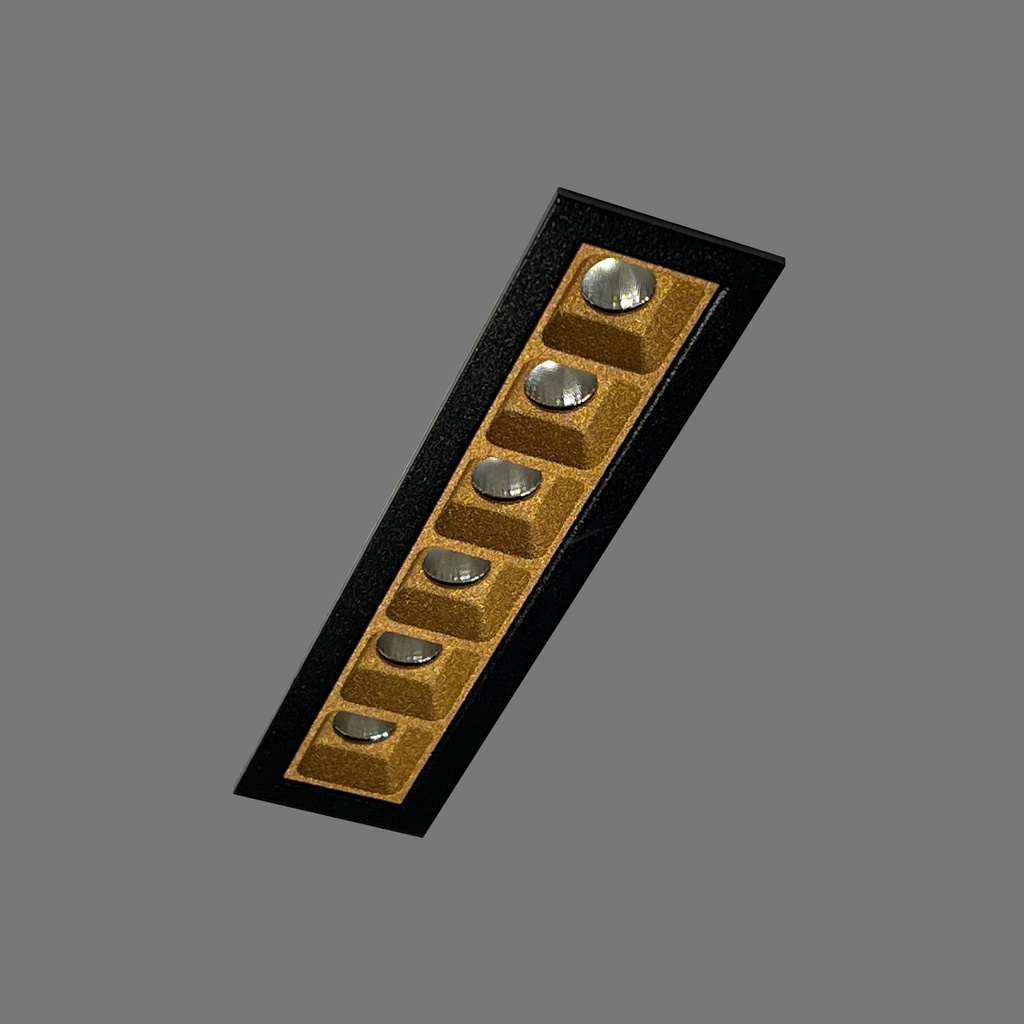

DOT 6

Download datasheet

SPECIFICATIONS

POWERLED(S) 6 x 2 Watt incl.
LENS 36°
CRI 90+
VOLTAGE 12W - 500mA
GEAR / DRIVER Included L 110 x H 22 x W 40
POWER SUPPLY 500mA, 12-24V-, Max.12W
FORWARD VOLTAGE 30V
MATERIAL Aluminium
MOUNTING DEPTH 40 mm
WEIGHT 0,230 KG
CUTOUT SHAPE / SIZE Square 122mm x 27mm
IP 20
OPTIONS: All other Dimmable protocols are available on request.
129,00 €

Contact Us

MODELS

Article n° Description Colour Visor colour Kelvin Lumen LDT
035011212709 DOT 3 INT. WARM WHITE BLACK STRUC. WHITE STRUC.
035011213009 DOT 6 INT. WARM WHITE BLACK STRUC. WHITE STRUC.
035011212710 DOT 3 INT. WARM WHITE BLACK STRUC. BLACK STRUC.
035011213010 DOT 6 INT. WARM WHITE BLACK STRUC. BLACK STRUC.
035011212711 DOT 3 INT. WARM WHITE BLACK STRUC. GOLD STRUC.
035011213011 DOT 6 INT. WARM WHITE BLACK STRUC. GOLD STRUC.
Article n° Description Colour Visor colour Kelvin Lumen LDT
035011212706 DOT 6 INT. WARM WHITE WHITE STRUC. WHITE STRUC.
035011213006 DOT 6 INT. WARM WHITE WHITE STRUC. WHITE STRUC.
035011212707 DOT 6 INT. WARM WHITE WHITE STRUC. BLACK STRUC.
035011213007 DOT 6 INT. WARM WHITE WHITE STRUC. BLACK STRUC.
035011212708 DOT 6 INT. WARM WHITE WHITE STRUC. GOLD STRUC.
035011213008 DOT 6 INT. WARM WHITE WHITE STRUC. GOLD STRUC.
Article n° Description Colour Visor colour Kelvin Lumen LDT
035011212712 DOT 6 INT. WARM WHITE ANY RAL WHITE STRUC.
035011213012 DOT 6 INT. WARM WHITE ANY RAL WHITE STRUC.
035011212713 DOT 6 INT. WARM WHITE ANY RAL BLACK STRUC.
035011213013 DOT 6 INT. WARM WHITE ANY RAL BLACK STRUC.
035011212714 DOT 6 INT. WARM WHITE ANY RAL GOLD STRUC.
035011213014 DOT 6 INT. WARM WHITE ANY RAL GOLD STRUC.
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL
LUMEN OUTPUT 2700 or 3000
VISOR COLOUR BLACK STRUC. or WHITE STRUC. or GOLD STRUC.
MOUNTING RECESSED
FIXATION CEILING
APPLICATION HOME INTERIOR
