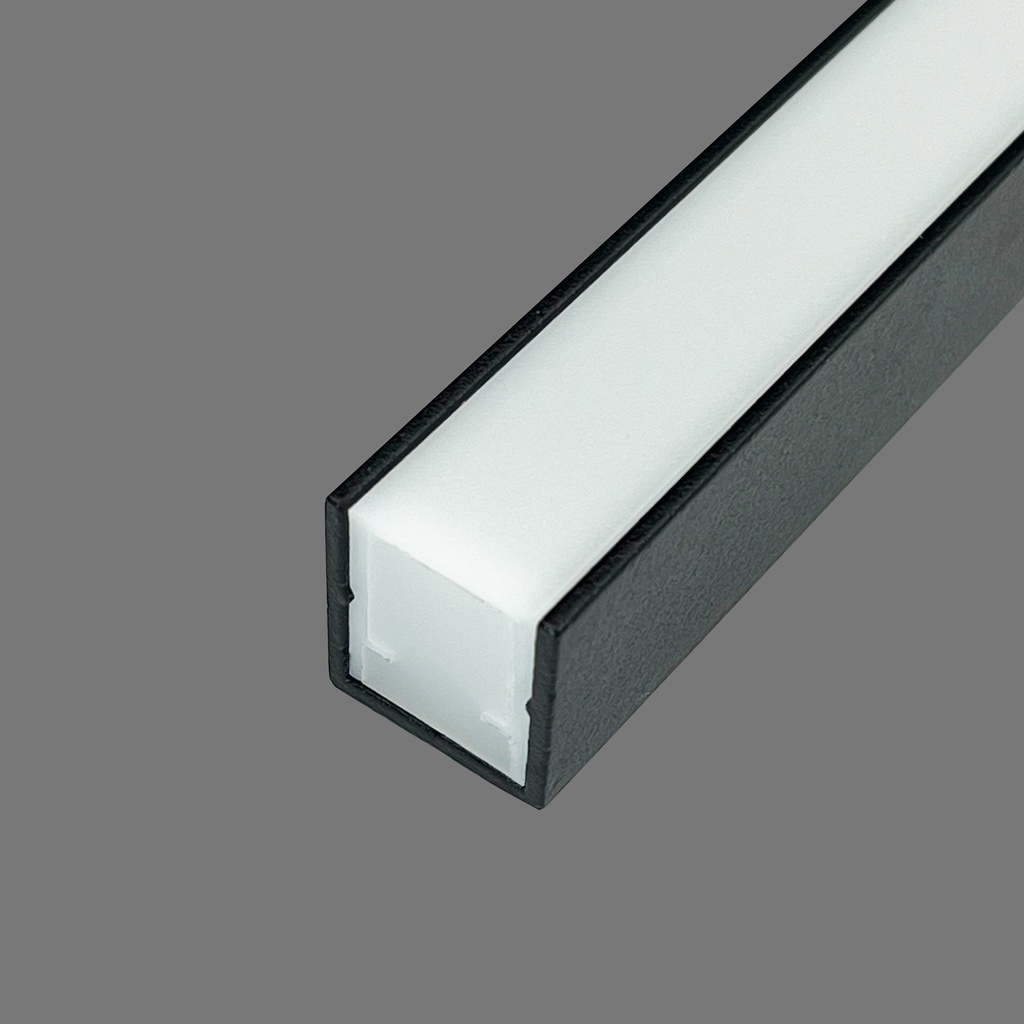

LEDPROFILE SMALL MONOCHROME IP20 12VDC

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,5 Watt 1,2Amp per meter
BEAM ANGLE 120°
CRI 90+
VOLTAGE 12 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pmma
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 0,3
IP 20
ORDER PER METER
OPTIONS: Possible options see Accessories. Excludes power cable (order separately). Dimmable (cfr. Accessories)
89,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
019121112702 LEDPROFILE SMALL INT. WARM WHITE BLACK STRUC. 2700 1100
019121113002 LEDPROFILE SMALL INT. WARM WHITE BLACK STRUC. 3000 1200
019121114002 LEDPROFILE SMALL INT. NATURAL WHITE BLACK STRUC. 4000 1320
019121116002 LEDPROFILE SMALL INT. COLD WHITE BLACK STRUC. 6000 1500
019121112701 LEDPROFILE SMALL INT. WARM WHITE WHITE STRUC. 2700 1100
019121113001 LEDPROFILE SMALL INT. WARM WHITE WHITE STRUC. 3000 1200
019121114001 LEDPROFILE SMALL INT. NATURAL WHITE WHITE STRUC. 4000 1320
019121116001 LEDPROFILE SMALL INT. COLD WHITE WHITE STRUC. 6000 1500
019121112716 LEDPROFILE SMALL INT. WARM WHITE NATURAL ANODIZED 2700 1100
019121113016 LEDPROFILE SMALL INT. WARM WHITE NATURAL ANODIZED 3000 1200
019121114016 LEDPROFILE SMALL INT. NATURAL WHITE NATURAL ANODIZED 4000 1500
019121116016 LEDPROFILE SMALL INT. COLD WHITE NATURAL ANODIZED 6000 1500
019121112703 LEDPROFILE SMALL INT. WARM WHITE ANY RAL 2700 1100
019121113003 LEDPROFILE SMALL INT. WARM WHITE ANY RAL 3000 1200
019121114003 LEDPROFILE SMALL INT. NATURAL WHITE ANY RAL 4000 1320
019121116003 LEDPROFILE SMALL INT. COLD WHITE ANY RAL 6000 1500
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2700 or 3000 or 4000 or 6000
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
