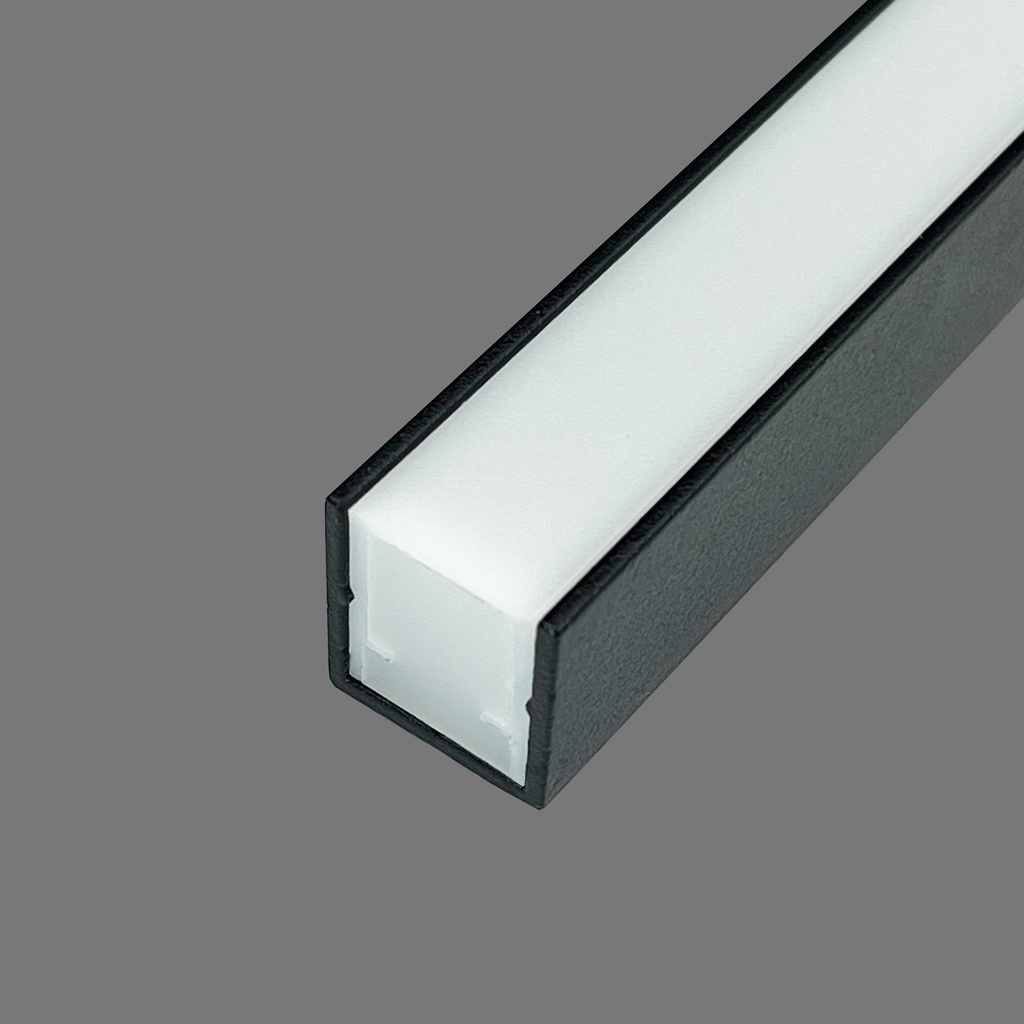

LEDPROFILE SMALL MONOCHROME IP20 24VDC

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,5 Watt 0,6Amp per meter
BEAM ANGLE 120°
CRI 90+
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pmma
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 0,3
IP 20
ORDER PER METER
OPTIONS: Possible options see Accessories. Excludes power cable (order separately). Dimmable (cfr. Accessories)
89,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
019241112702 LEDPROFILE SMALL INT. WARM WHITE BLACK STRUC. 2700 1100
019241113002 LEDPROFILE SMALL INT. WARM WHITE BLACK STRUC. 3000 1200
019241114002 LEDPROFILE SMALL INT. NATURAL WHITE BLACK STRUC. 4000 1320
019241112701 LEDPROFILE SMALL INT. WARM WHITE WHITE STRUC. 2700 1100
019241113001 LEDPROFILE SMALL INT. WARM WHITE WHITE STRUC. 3000 1200
019241114001 LEDPROFILE SMALL INT. NATURAL WHITE WHITE STRUC. 4000 1320
019241112716 LEDPROFILE SMALL INT. WARM WHITE NATURAL ANODIZED 2700 1100
019241113016 LEDPROFILE SMALL INT. WARM WHITE NATURAL ANODIZED 3000 1200
019241114016 LEDPROFILE SMALL INT. NATURAL WHITE NATURAL ANODIZED 4000 1320
019241112703 LEDPROFILE SMALL INT. WARM WHITE ANY RAL 2700 1100
019241113003 LEDPROFILE SMALL INT. WARM WHITE ANY RAL 3000 1200
019241114003 LEDPROFILE SMALL INT. NATURAL WHITE ANY RAL 4000 1320
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2700 or 3000 or 4000
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
