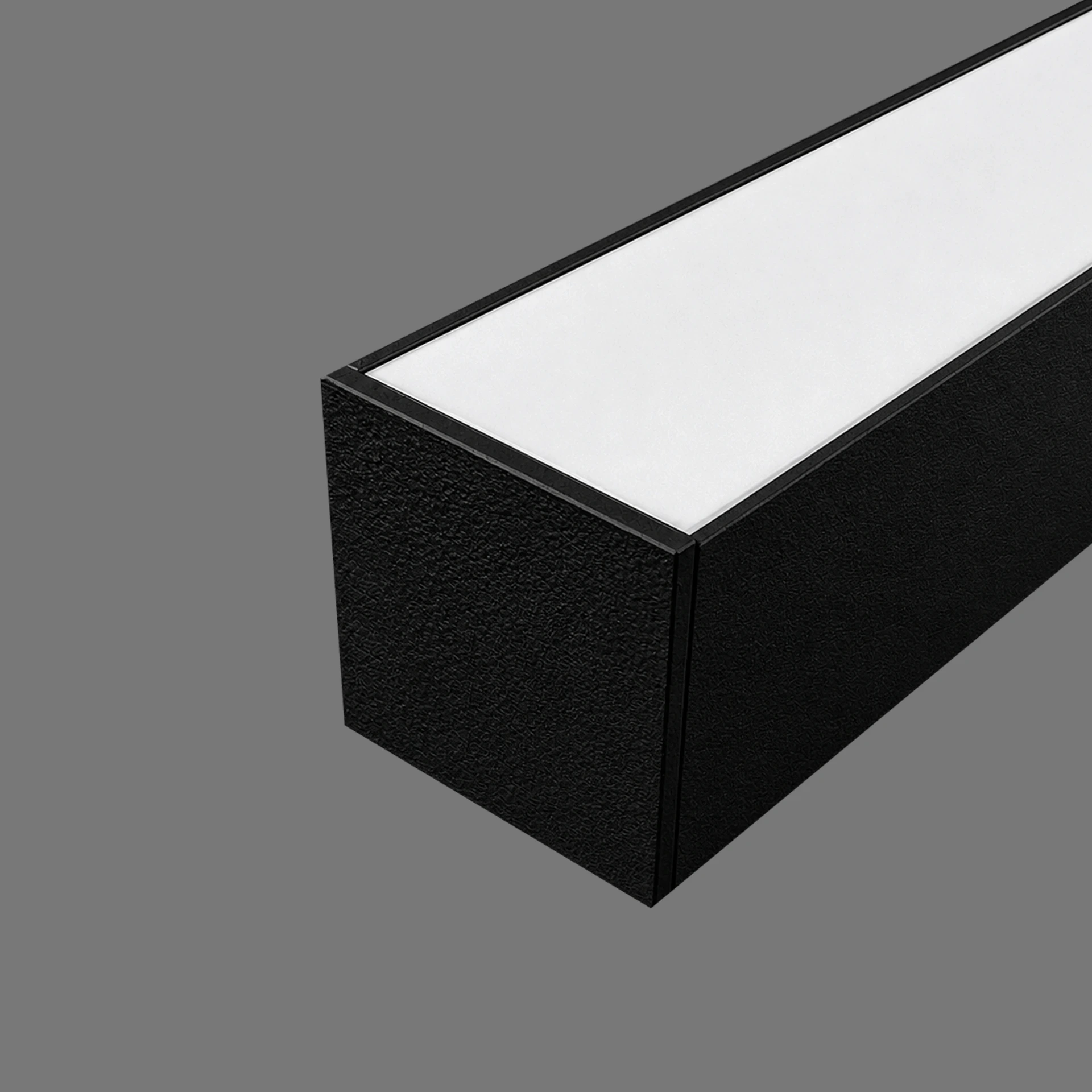

LINJA FLAT IP20 24VDC 18W

Download datasheet

SPECIFICATIONS

SMD LED(S) COB
MAX. POWER 18 Watt 0,75Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
199,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
046181112209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 1000 -
046181122209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2200 1000 -
046181112709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 1000 -
046181122709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 1000 -
046181113009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 1150 -
046181123009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 1150 -
046181114009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 1285 -
046181124009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 1285 -
046181112210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 800 -
046181122210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2200 800 -
046181112710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 800 -
046181122710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 800 -
046181113010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 920 -
046181123010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 920 -
046181114010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 1028 -
046181124010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 1028 -
046181112206 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 1000 -
046181122206 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2200 1000 -
046181112706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 1000 -
046181122706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 1000 -
046181113006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 1150 -
046181123006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 1150 -
046181114006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 1285 -
046181124006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 1285 -
046181112207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 800 -
046181122207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 800 -
046181112707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 800 -
046181122707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 800 -
046181113007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 920 -
046181123007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 920 -
046181114007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 1028 -
046181124007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 1028 -
046181112228 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 1000 -
046181122229 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 1000 -
046181112728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1000 -
046181122728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 1000 -
046181113028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1150 -
046181123028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 1150 -
046181114028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1285 -
046181124028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 1285 -
046181112229 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 800 -
046181122228 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 800 -
046181112729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 800 -
046181122729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 800 -
046181113029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 920 -
046181123029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 920 -
046181114029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1028 -
046181124029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 1028 -
046181112212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2200 1000 -
046181122212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2200 1000 -
046181112712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2700 1000 -
046181122712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 1000 -
046181113012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 3000 1150 -
046181123012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 1150 -
046181114012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 4000 1285 -
046181124012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 1285 -
046181112213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2200 800 -
046181122213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2200 800 -
046181112713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2700 800 -
046181122713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 800 -
046181113013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 3000 920 -
04696181123013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 1028 -
046181114013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 4000 1028 -
046181124013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 1028 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 18
