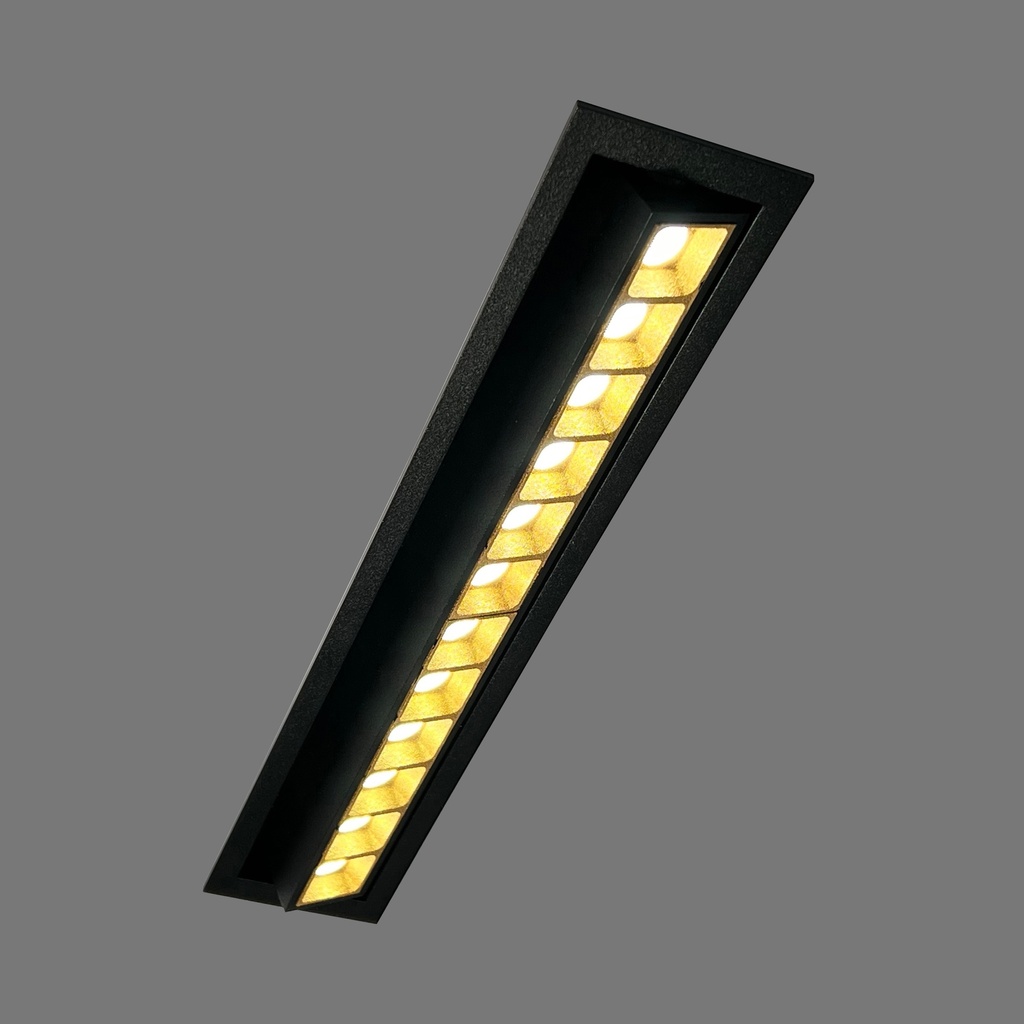

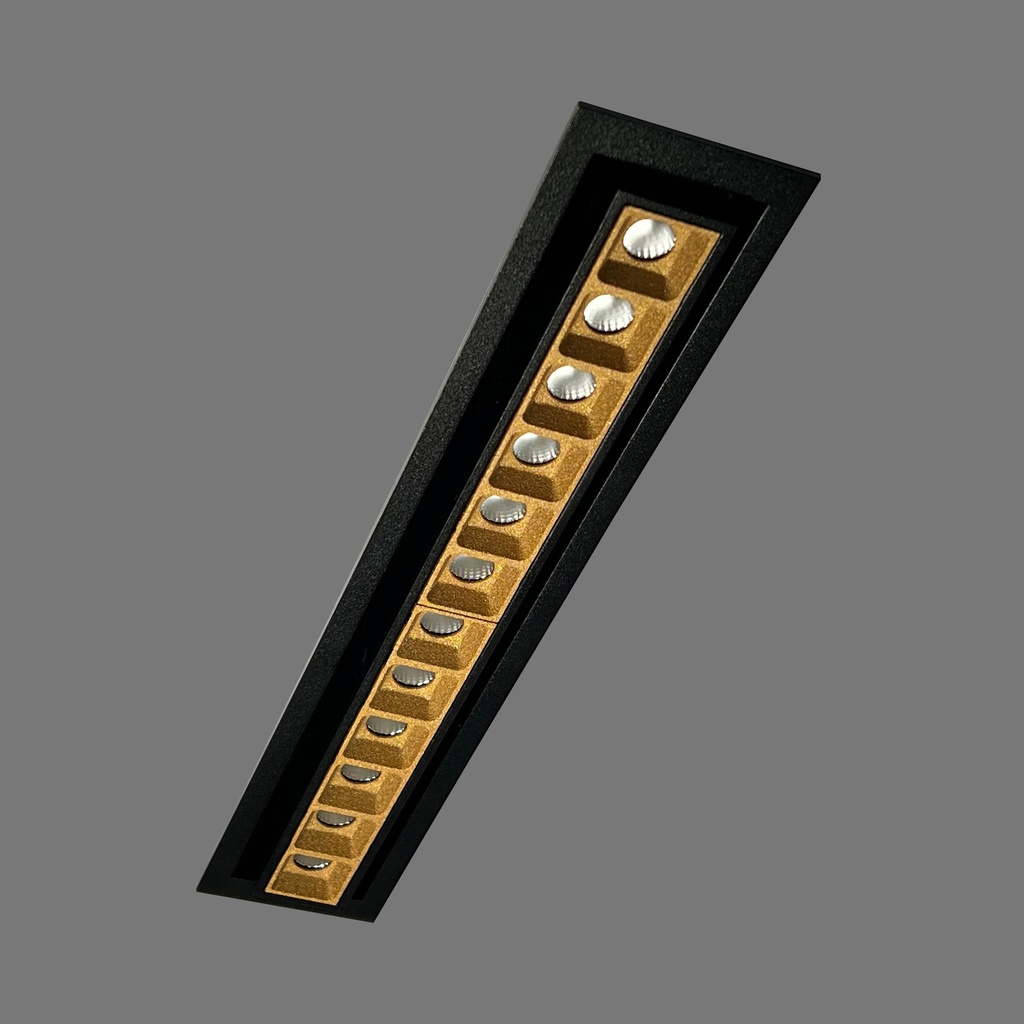

DOT 12 DIRECTABLE

Download datasheet

SPECIFICATIONS

POWERLED(S) 12 x 2 Watt incl.
LENS 36°
CRI 90+
VOLTAGE 24W - 500mA
GEAR / DRIVER Included L 120 x H 28 x W 44
POWER SUPPLY 500mA, 25-50V-, Max.25W
FORWARD VOLTAGE 60V
MATERIAL Aluminium
MOUNTING DEPTH 40 mm
WEIGHT 0,400 KG
CUTOUT SHAPE / SIZE Square 245mm x 40mm
IP 20
OPTIONS: All other Dimmable protocols are available on request.
208,00 €

Contact Us

MODELS

Article n° Description Colour Visor colour Kelvin Lumen LDT
036101212709 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. WHITE STRUC. 2700 1634
036101213009 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. WHITE STRUC. 3000 1634
036101212710 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. BLACK STRUC. 2700 1634
036101213010 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. BLACK STRUC. 3000 1634
036101212711 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. GOLD STRUC. 2700 1634
036101213011 DOT 12 DIRECTABLE INT. WARM WHITE BLACK STRUC. GOLD STRUC. 3000 1634
Article n° Description Colour Visor colour Kelvin Lumen LDT
036101212706 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. WHITE STRUC. 2700 1634
036101213006 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. WHITE STRUC. 3000 1634
036101212707 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. BLACK STRUC. 2700 1634
036101213007 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. BLACK STRUC. 3000 1634
036101212708 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. GOLD STRUC. 2700 1634
036101213008 DOT 12 DIRECTABLE INT. WARM WHITE WHITE STRUC. GOLD STRUC. 3000 1634
Article n° Description Colour Visor colour Kelvin Lumen LDT
036101212712 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL WHITE STRUC. 2700 1634
036101213012 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL WHITE STRUC. 3000 1634
036101212713 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL BLACK STRUC. 2700 1634
036101213013 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL BLACK STRUC. 3000 1634
036101212714 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL GOLD STRUC. 2700 1634
036101213014 DOT 12 DIRECTABLE INT. WARM WHITE ANY RAL GOLD STRUC. 3000 1634
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL
LUMEN OUTPUT 2700 or 3000
VISOR COLOUR BLACK STRUC. or WHITE STRUC. or GOLD STRUC.
MOUNTING RECESSED
FIXATION CEILING
APPLICATION HOME INTERIOR
