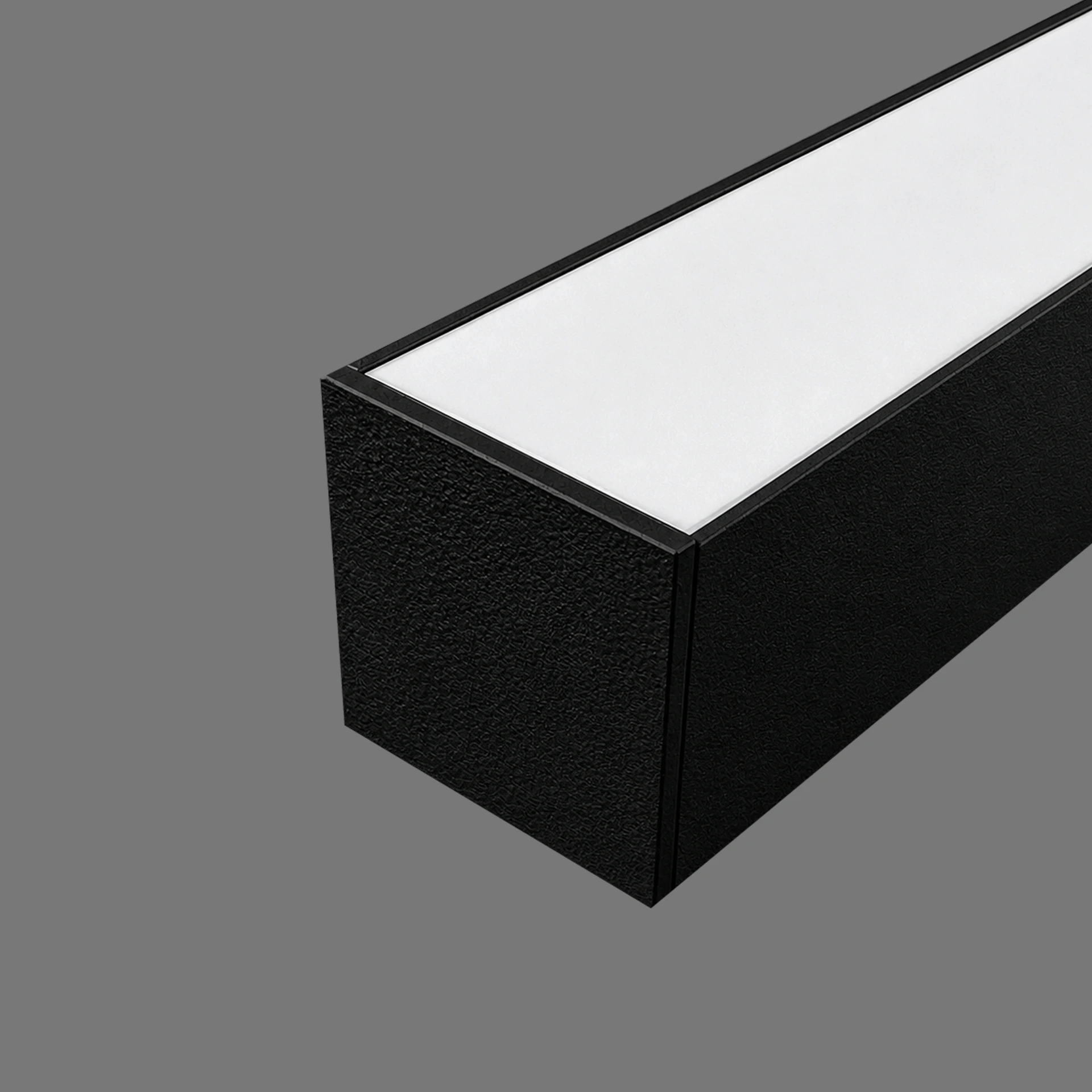

LINJA FLAT IP20 24VDC 14,4W

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,4 Watt 0,6Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 0,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
182,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
046141112209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 700 -
046141122209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2200 700 -
046141112709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 700 -
046141122709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 700 -
046141113009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 800 -
046141123009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 800 -
046141114009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 900 -
046141124009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 900 -
046141112210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 560 -
046141122210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2200 560 -
046141112710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 560 -
046141122710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 560 -
046141113010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 640 -
046141123010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 640 -
046141114010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 720 -
046141124010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 720 -
046141112206 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 700 -
046141122206 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2200 700 -
046141112706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 700 -
046141122706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 700 -
046141113006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 800 -
046141123006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 800 -
046141114006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 900 -
046141124006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 900 -
046141112207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 560 -
046141122207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 560 -
046141112707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 560 -
046141122707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 560 -
046141113007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 640 -
046141123007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 640 -
046141114007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 720 -
046141124007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 720 -
046141112228 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 700 -
046141122229 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 560 -
046141112728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 700 -
046141122728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 700 -
046141113028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 800 -
046141123028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 800 -
046141114028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 900 -
046141124028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 900 -
046141112229 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 560 -
046141122228 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 560 -
046141112729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 560 -
046141122729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 560 -
046141113029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 640 -
046141123029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 640 -
046141114029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 720 -
046141124029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 720 -
046141112212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2200 700 -
046141122212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2200 700 -
046141112712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2700 700 -
046141122712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 700 -
046141113012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 3000 800 -
046141123012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 800 -
046141114012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 4000 900 -
046141124012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 900 -
046141112213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2200 560 -
046141122213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2200 560 -
046141112713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2700 560 -
046141122713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 560 -
046141113013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 3000 640 -
046141123013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 640 -
046141114013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 4000 720 -
046141124013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 720 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 14,4
