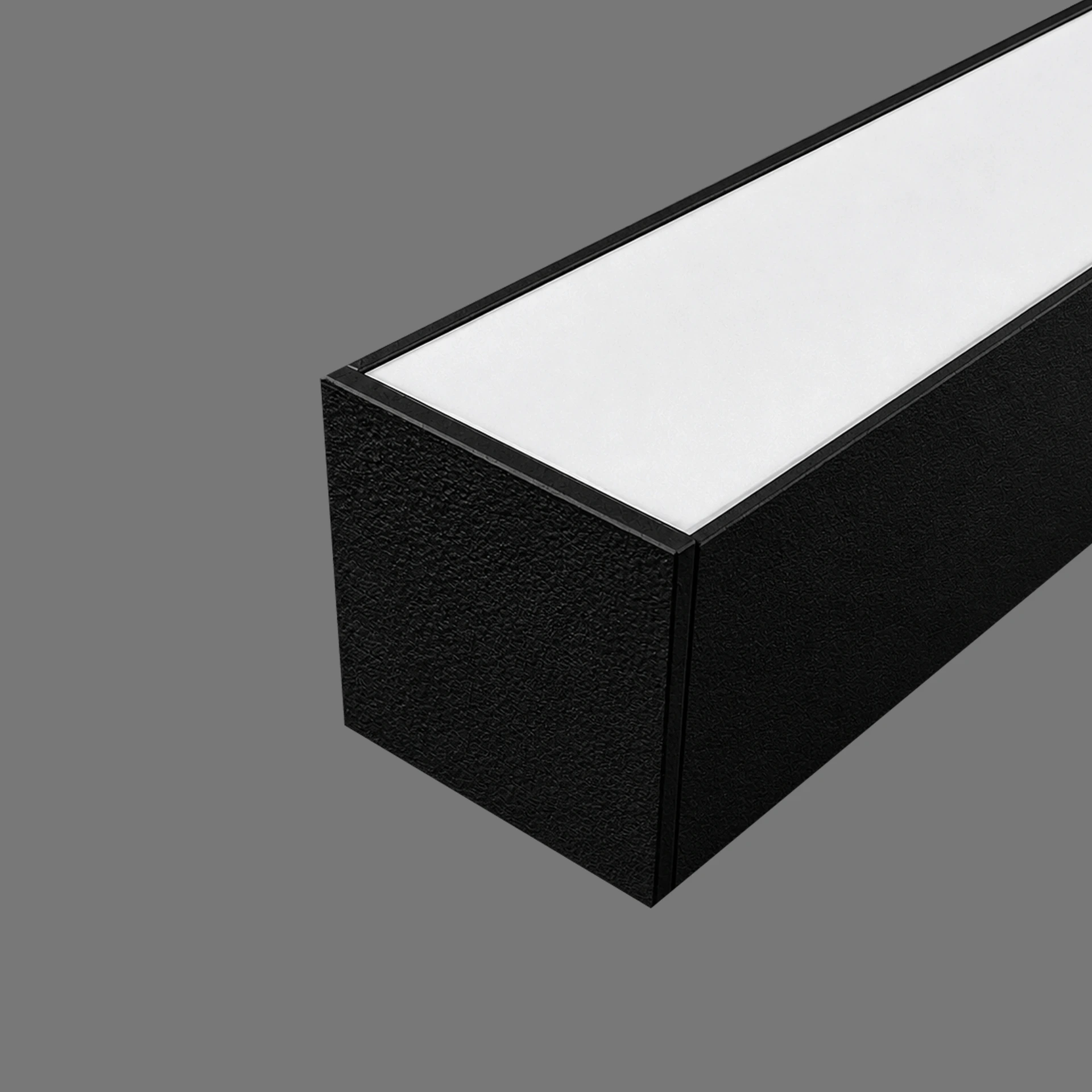

LINJA FLAT IP20 24VDC 22W

Download datasheet

SPECIFICATIONS

SMD LED(S) 128 per meter
MAX. POWER 22 Watt 0,92Amp per meter
BEAM ANGLE 120°
CRI 80+(opal) 70+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
214,90 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
046221112709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 1950 -
046221122709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 1950 -
046221113009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 2250 -
046221123009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 2250 -
046221114009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 2360 -
046221124009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 2360 -
046221112710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 1560 -
046221122710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 1560 -
046221113010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 1800 -
046221123010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 1800 -
046221114010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 1890 -
046221124010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 1890 -
046221112706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 1950 -
046221122706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 1950 -
046221113006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 2250 -
046221123006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 2250 -
046221114006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 2360 -
046221124006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 2360 -
046221112707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 1560 -
046221122707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 1560 -
046221113007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 1800 -
046221123007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 1800 -
046221114007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 1890 -
046221124007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 1890 -
046221112728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1950 -
046221122728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 1950 -
046221113028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 2250 -
046221123028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 2250 -
046221114028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 2360 -
046221124028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 2360 -
046221112729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1560 -
046221122729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 1560 -
046221113029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1800 -
046221123029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 1800 -
046221114029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1890 -
046221124029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 1890 -
046221112712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2700 1950 -
046221122712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 1950 -
046221113012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 3000 2250 -
046221123012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 2250 -
046221114012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 4000 2360 -
046221124012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 2360 -
046221112713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2700 1560 -
046221122713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 1560 -
046221113013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 3000 1800 -
046221123013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 1800 -
046221114013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 4000 1890 -
046221124013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 1890 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 22
