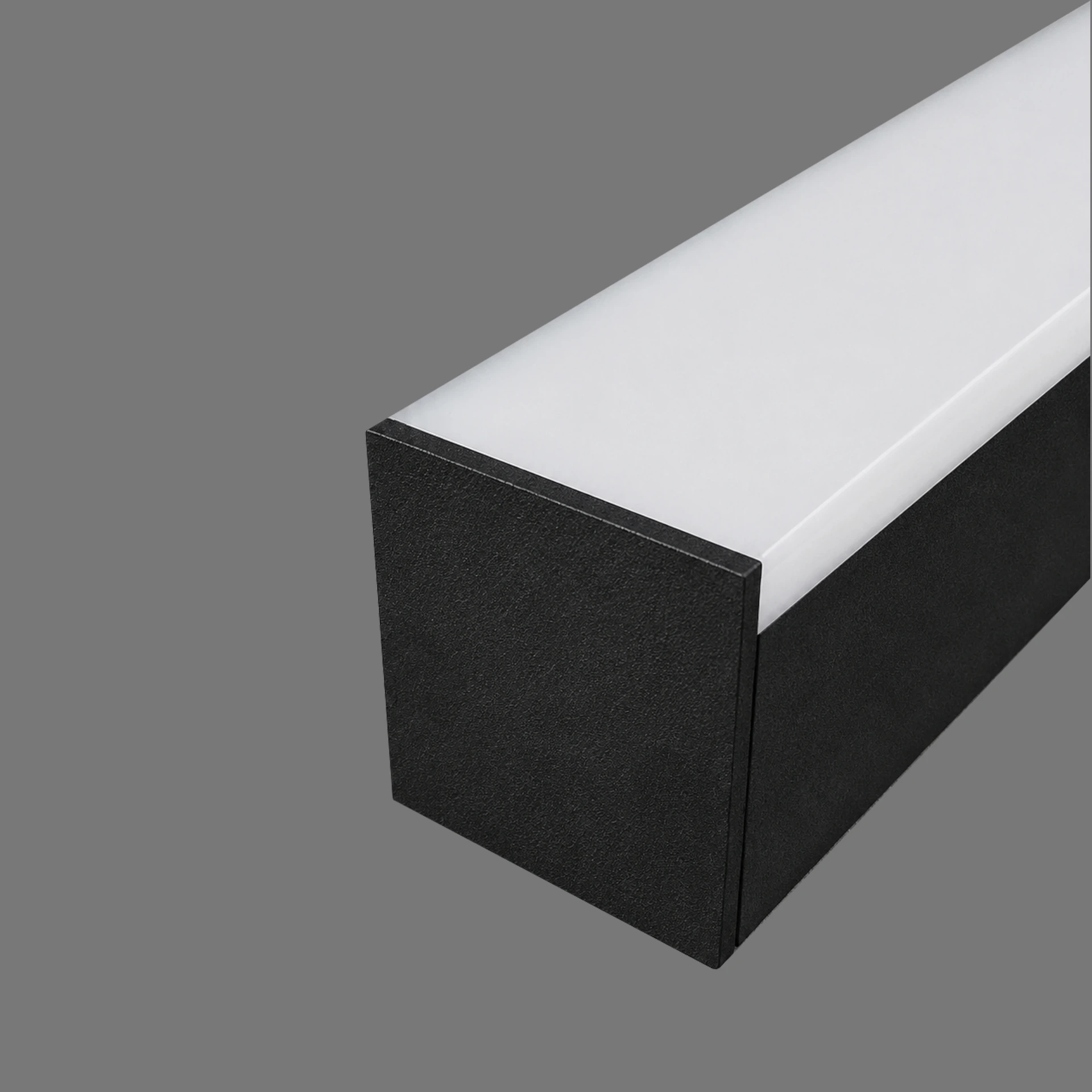

LINJA HIGH IP20 24VDC 14,4W

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,4 Watt 0,6Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
190,90 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
047241112209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 700 -
047241122209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 700 -
047241112709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 700 -
047241122709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 700 -
047241113009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 800 -
047241123009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 800 -
047241114009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 900 -
047241124009 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 900 -
047241112210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 560 -
047241122210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2200 560 -
047241112710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 560 -
047241122710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2700 560 -
047241113010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 640 -
047241123010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 3000 640 -
047241114010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 720 -
047241124010 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 4000 720 -
047241112206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 700 -
047241122206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 700 -
047241112706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 700 -
047241122706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 700 -
047241113006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 800 -
047241123006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 800 -
047241114006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 900 -
047241124006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 900 -
047241112207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 560 -
047241122207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2200 560 -
047241112707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 560 -
047241122707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2700 560 -
047241113007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 640 -
047241123007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 3000 640 -
047241114007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 720 -
047241124007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 4000 720 -
047241112228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 700 -
047241122228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 700 -
047241112728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 700 -
047241122728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 700 -
047241113028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 800 -
047241123028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 800 -
047241114028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 900 -
047241124028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 900 -
047241112229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 560 -
047241122229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2200 560 -
047241112729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 560 -
047241122729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2700 560 -
047241113029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 640 -
047241123029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 3000 640 -
047241114029 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 720 -
047241124029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 4000 720 -
047241112212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2200 700 -
047241122212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 700 -
047241112712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2700 700 -
047241122712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 700 -
047241113012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 3000 800 -
047241123012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 800 -
047241114012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 4000 900 -
047241124012 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 900 -
047241112213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2200 560 -
047241122213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2200 560 -
047241112713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2700 560 -
047241122713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2700 560 -
047241113013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 3000 640 -
047241123013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 3000 640 -
047241114013 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 4000 720 -
047241124013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 4000 720 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC HIGH OPAL or PC HIGH BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 14,4
